This Powder filling machine is completely made of stainless steel, Filling system is driven by servo-motor , and Taiwan made maintenance-free reducer is used for agitating motor , Product cabinet is specified as fully closed , damper air-pressure control , made of stainless steel and glass . The dust extraction device is mounted in the mouth of the filling tube , designed for reusable working table height adjustable , with a waste product drawer under the table .

1.      Main Features on powder filling machines semi automatic for baby talcum powder :

►Made of stainless steel : totally adapt to the require of GMP or other food sanitation certification suitable for packing corrosive chemicals ;

►Filling better stability and higher weighing precision ;

►Filling system is driven by BuJin motor , high precision , high torque , long operation life and rpm settable ;

►Taiwan made maintenance-free reducer is used for agitating motor: low noise level , long operation life , maintenance-free for life time ;

►Designed for working condition changeable in any time ;

►Max.10 recipes can be saved for later using ;

►Contacted material steel is food type stainless 304;

►Product cabinet is fully closed , damp air-pressure controlled and made of glass with stainless steel , product’s movement in the cabinet is clear at a glance no powder leak , dust extraction device mounted in the mouth of the filling tube lead to clean plant environment ;

►Trough changing accessories , the machine is suitable for multiple products , no matter super fine power or large grain .

3. Specification of powder filling machine auger measuring feeding filler equipment

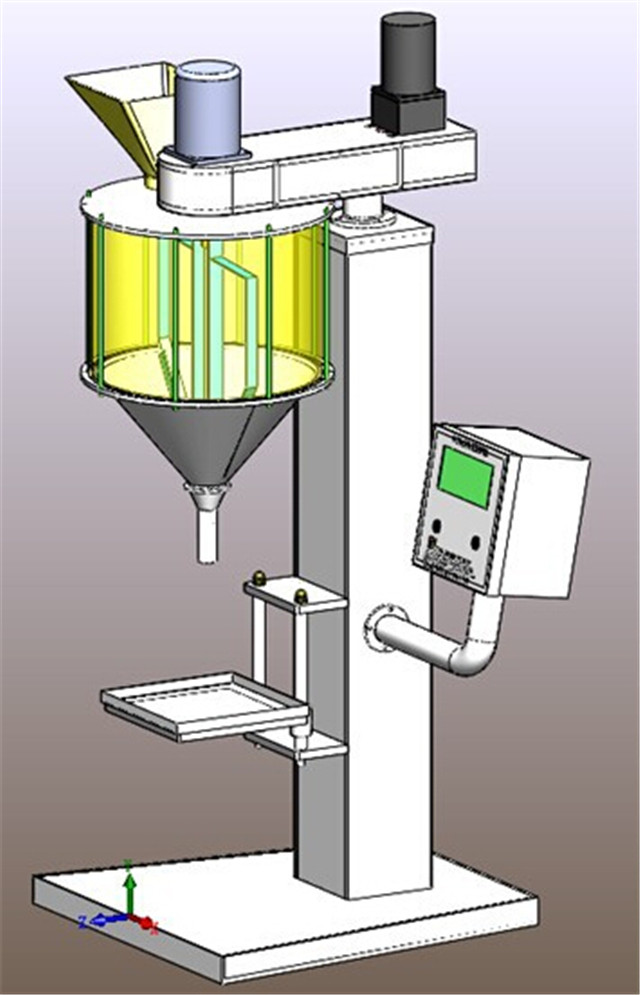

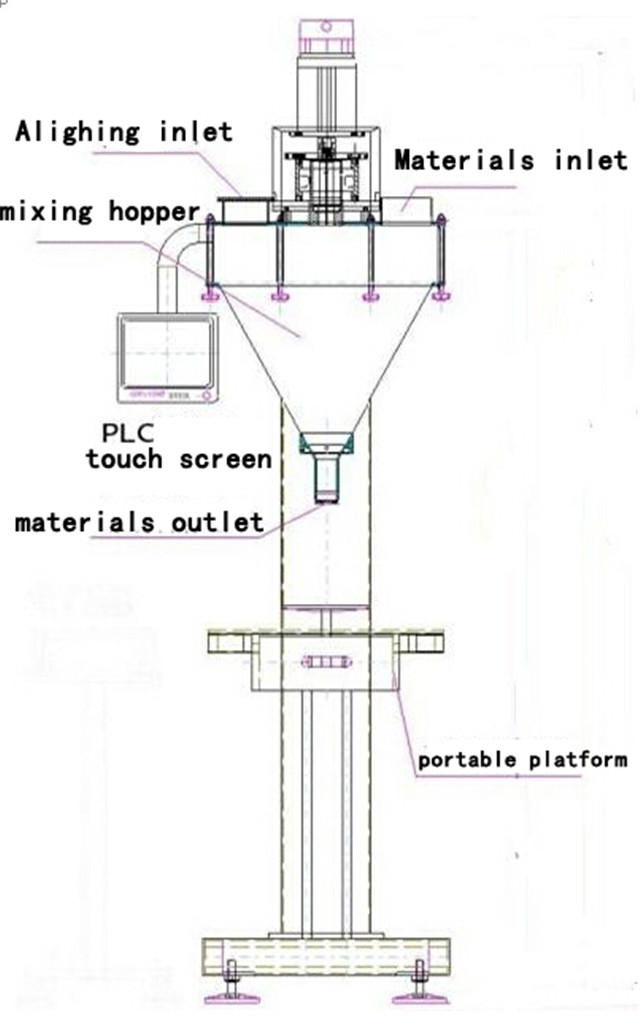

4. ILLUSTRATION OF powder filling machine with Touch screen controlling：

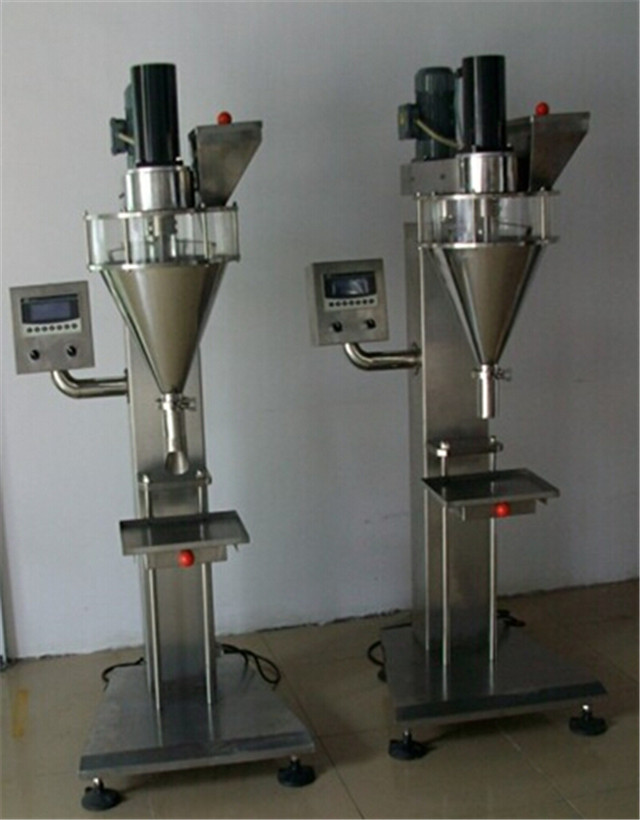

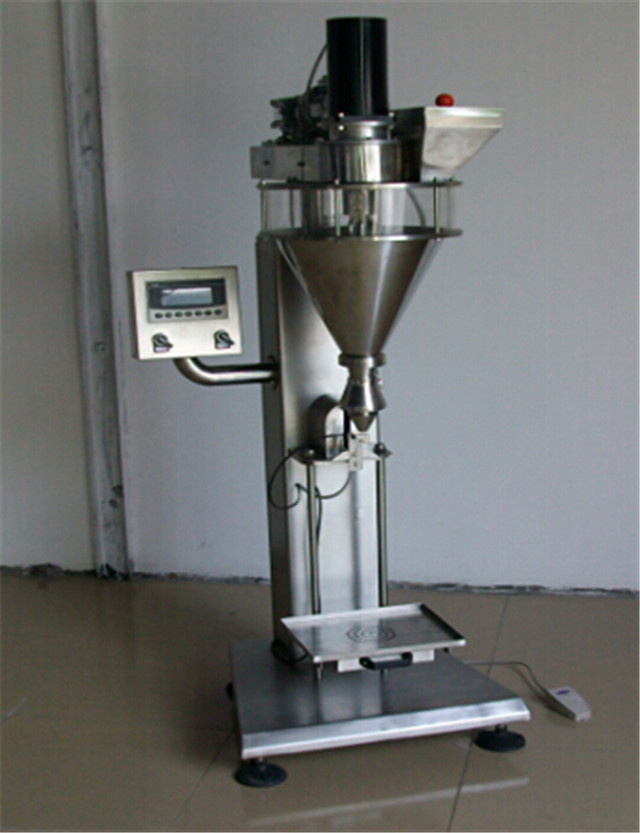

5. filling machine pictures：

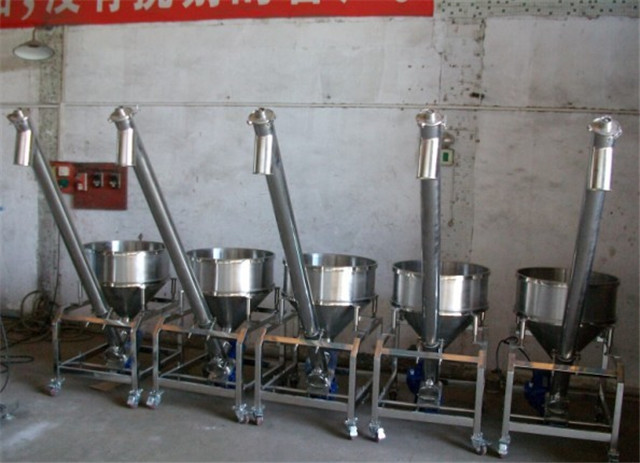

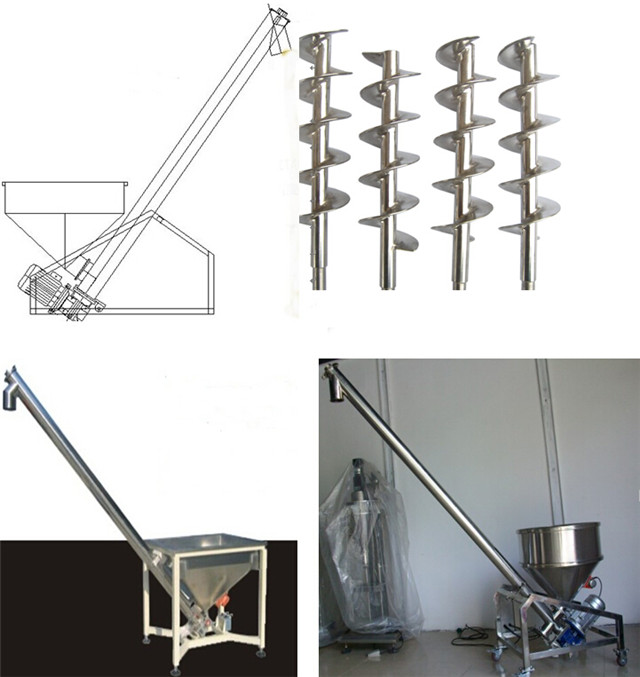

Elevator screw feeding materials loading&feeder

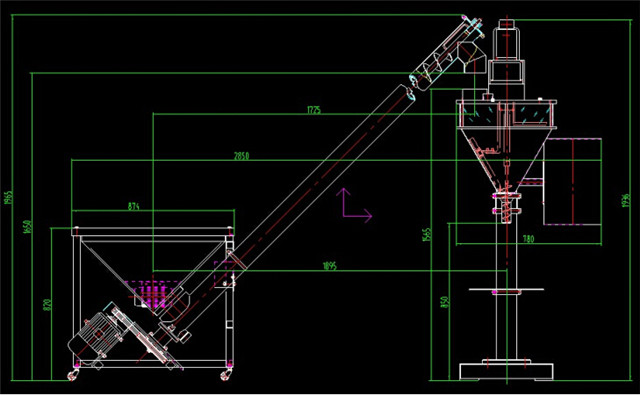

Installation for materials feeding&loading：

l  Two direction switch; Forward/reversal rotation respectively for feeding materials and unloading materials from the bottom outlet

► The Shaft-coupling of reducer cannot be blocked .After installation the shaft-coupling should be tensile and Flexible in order to the burnt damage from overloading in the motor. During the installation the Flange bolt can be properly adjusted;

►The end of auger pin should never be fixed too tight lest the rotating auger touch the pipe wall due to bent auger.Please screw tight the nut to fix the pin in order to fix it.Every time the auger is pulled out for cleaning and re-installation should be considered of this point.

►The volume and height of elevator can be integrated with packing machine by means of series induction. There is no feeding materials from the elevator without materials in the tank.

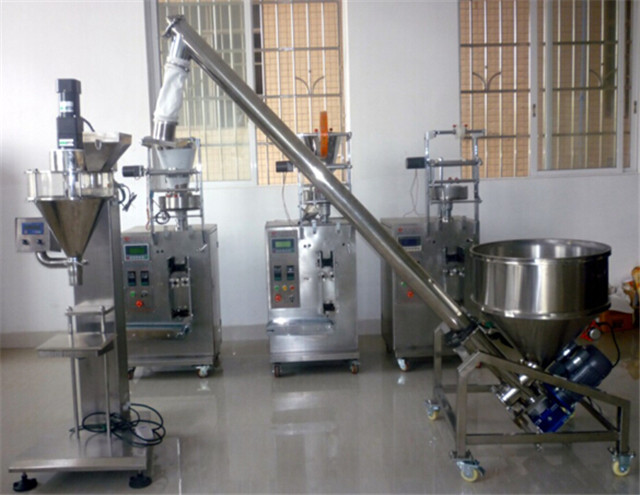

►The elevator joint-works with powder filling machine, automatically feeding and stopping。

3.technic parameter for elevator：

 Packaging&shipping for auger filling packaging machines semi automatic for power into bottles&bags

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
