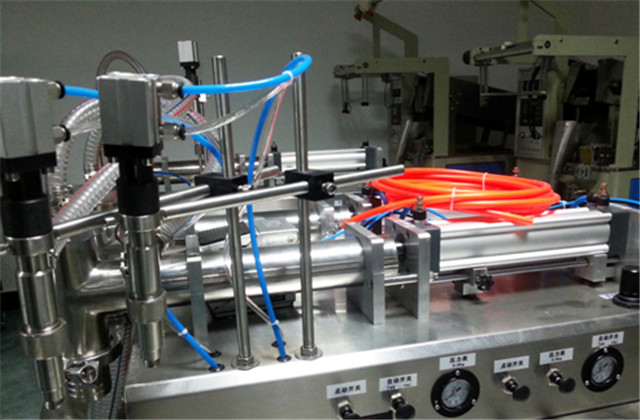

Full - pneumatic Horizontal Self-suction Ointment Filling Machine For Chemical Industry

The horizontal self-suction filling machine is suitable for filling products of various viscosity such as water injection and ointment etc.

It is applied in such industries as daily chemical industry, pharmacy, food and pesticide etc. The semi-automatic piston type filling machine(full-pneumatic) is

a new generation product developed on the basis of the original electric combined machines. It adopts pneumatic components to replace the electric control circuit.

Therefore, it is especially suitable for use in damp conditions or conditions with explosion-proof requirements.

The parts of our LM series products that contact materials are all made of imported 316L stainless steel

through CNC machine tools with the surface roughness lower than 0.8.


Principles and characteristics of flammable liquid filling machine without any electric switch fully pneumatic:

1.  The  paste  filling  machine  is  semi-automatic  piston  type developed  by  our  company,

filling  a  series  of  high concentrations of fluids. It is through air cylinder to drive a piston  and  transfer--valve’s

Three  Contacts  principle  to extract  and  to  split  out  the  highly  concentrated material

by  magnetism-reed  switch  to  control  air  cylinder’s travel, then can adjust the filling volume.

2.  This device is simple and reasonable in structure, easy to

understand, with high accuracy.

3.  Pneumatic  part  adopts  Germany  FESTO  and  Taiwan AirTac pneumatic components.

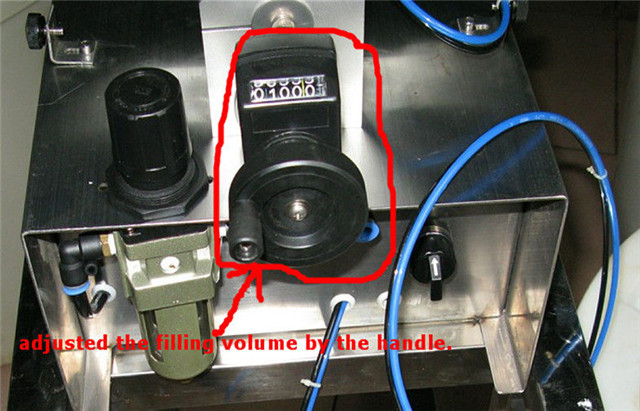

4.    Filling volume and filling speed can be arbitrarily adjusted

with high filling accuracy.

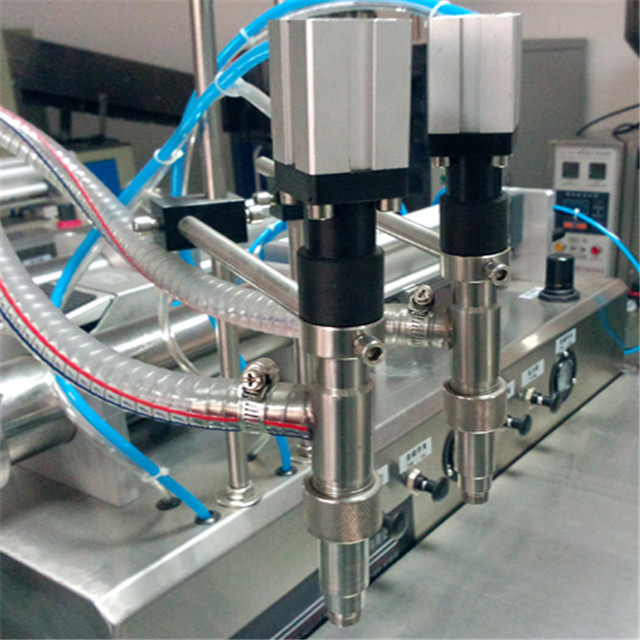

5. Filling  head  adopts  anti-drip,  anti-  drawing  and  lifting devices.

Technical Parameter of double heads filling machinery:

Model       filling volume     Air consumption       Net weight             Dimensions(mm)   S

YX-F2-15     5-150ml           23L/min                     26kg              L102xW56xH50

YX-F2-25      10-250ml         30L/min                    40kg              L112xW60xH50

YX-F2-50      10-250ml         44L/min                    43kg              L118xW64xH52

YX-F2-100     60-1000ml        87L/min                  51kg              L130xW72xH52

YX-F2-250     250-2500ml      160L/min               75kg              L142xW80xH70

YX-F2-500     500-5000ml      300L/min              90kg            L150xW110xH78

Filling speed :20-35 bottles / min / head

Mark:On the double head machine, both the heads work from two intake hoses, to feed to cylinders, sucking the materials separately

For more information browse our business youtube site     http://youtube.com/user/mrjackdu007

Besides this double heads fully pneumatic filling machinery we also offer the single heads pneumatic liquid filling machines  vertical filling machinery  manual liquid filling machines

as well as the high precision magnetic pump filling machine for liquid,all of which are listed in the video as below:

1.single heads fully pneumatic liquid filling machine

2.vertical filling machinery for cream lotion

3.manual liquid filling machinery for small bottles filling volume

4.high precision magnetic pump filling machine for liquid perfume juice lotion

Packaging pictures about our machine exported

Guarantee: for all the machine, it claims three years for guarantee.(Excluded from the warranty are problems due to accidents, misuse ,

misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also

training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country)

should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
