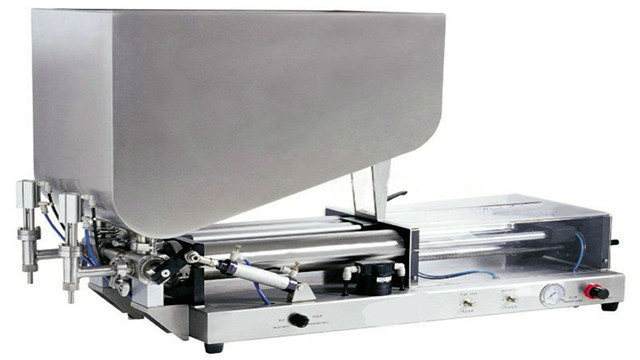

Pneumatic Semi-automatic Paste Filling Machinery With Two Heads Series double headed jam cream filling machinery without electronic parts



The full-pneumatic filling machine can be classified into elaborate type (T type) product and ordinary type (P type) product.

The elaborate type adopts Germany FESTO pneumatic components. The imported components of excellent quality has ensured its absolute leading position among other same machines in the country.

The ordinary type selects pneumatic components from Taiwan or Korea. The good performance-price ratio enables more customers to experience the outstanding quality of LM series machines

The horizontal self-suction liquid filling machine is suitable for filling products of various viscosity such as water injection and ointment etc. It is applied in such industries as daily chemical industry, pharmacy, food and pesticide etc.

The semi-automatic piston type filling machine(full-pneumatic) is a new generation product developed on the basis of the original electric combined machines. It adopts pneumatic components to replace the electric control circuit.

Therefore, it is especially suitable for use in damp conditions or conditions with explosion-proof requirements.

The parts of our LM series products that contact materials are all made of imported 316L stainless steel and are machined through CNC machine tools with the surface roughness lower than 0.8.

Feature of double headed pepper sauce food jam filling machinery semi automatic:



1. suitable for filling viscosity liquid like sauce, jam, shampoo, lotion, perfume, etc with soft   particulate

2. can fill all kind of containers such as bottles, cans, cups, etc

3. Full pneumatic control, easy to operate, remove and clean; ideal equipment for filling

    inflammable, explosive materials

4. liquid contacted material use 316L stainless steel, other metals are made of 304 stainless

    steel with surface finishing and special treatment which guarantee you very good quality

5. equipped with Airtac cylinder, high filling precision

 6. equipped with double filling heads, high filling speed

Technical Data of double heads fully pneumatic jam pepper sauce filling machine semi automatic:

MODEL	YX-LC60-2	YX-LC120-2	YX-LC-250-2	YX-LC500-2
Filling range	5-60ml	10-120ml	25-250ml	50-500ml
Air pressure	4-6kg/cm2	4-6kg/cm2	4-6kg/cm2	5-8kg/m2
Filling speed	30-60bpm	30-60bpm	30-60bpm	30-60bpm
Filling precision	99%	99%	99%	99%
MODEL	YX-LC1000-2	YX-LC2500-2	YX-LC5000-2
Filling range	100-1000ml	250-2500ml	500-5000ml
Air pressure	5-8kg/m2	5-8kg/m2	5-8kg/m2
Filling speed	30-60bpm	20-50bpm	10-30bpm
Filling precision	99%	99%	99%



Application:

1) can fill paste, cream, jam, sauce, gel, shampoo, lotion, oil, juice, perfume, ink, water, etc for all containers such as bottles, jars, cans, etc

2) Widely used in cosmetic, drinks, chemical, medical, food industry etc, which  can highly improve productivity and product quality.

Packaging including:



main machine x 1pcs

hopper x 1pcs

fuse x 3pcs

user manual x 1pcs

quality card x 1pcs

Besides the above-mentioned filling machine there are other cream jam filling machinery pneumatic driven system,there are other kinds of filling machine semi automatic which are in order listed

as below ,thus they say:

1.

vertical cream filling machine pneumatic controlling system hopper Liquid & lotion filler equipment

=

2.

horizontal liquid filling machine fully pneumatic cream lotion semi automatic filler equipment



3.

Full pneumatic liquid&paste filling machine 50-1000ML for cosmetic&pharmaceutical cream lotion



4.

hand liquid filling machine manual liquid filler small filling equipment for cream water lotion



5.

semi automatic vertical filling machine cream filler Semi-Automatique de remplissage vertical



6.

Handheld semi auto cream liquid filling machine horizontal filler Abfuellmaschine fuer fluessigkeit



7.

manual filling machine for lotion vertical liquid filler manuelle Füllmaschine fuer Fluessigkeit



8.

horizontal filling machine with hopper for both cream&liquid macchina di riempimento orizzontale



9.

grape seed oil filling machine semi auto pneumatic liquid filler aceite de la máquina de llenado



10.

semi automatic liquid&cream pneumatic filling machine Полуавтоматическая машина заполнения



11.

20-200ml juice yogurt liquid filling machine spout bags semi automatic filler equipment food packing



12.

semi automatic single head thick sauce filling machine pneumatic cream filler



13.



2 heads pepper sauce filling Capping machine Salsa de pimienta de llenado automático de la máquina

14.

Ketchup tomato sauce cream pepper paste fully pneumatic filling machine horizontal filler equipment



15.

Single nozzle Mascara filling macine semi automatic Cosmetic beauty products cream filler equipment





Payment Terms&Packaging pictures about our machine exported





Quotation: FOB (GUANGZHOU or SHENZHEN ) the below mentioned quotation based

Package: Each machine wrapped by PO film, then packed to standard wooden case.

Production Lead: 20 workdays after getting the down payment 30%,the other 70% payment collected before shipping

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse ,

misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine

(The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day.

also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
