perfume 4 Heads vacuum filling machine liquid filler semi-automática máquina llenadora de perfume

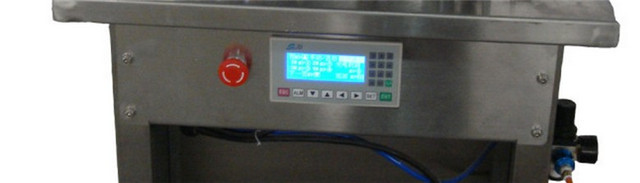

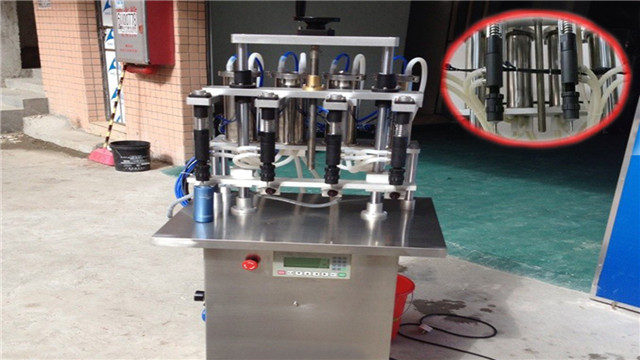

YX Series four heads perfume filling machine (one head and four heads) is negative pressure semi-auto filling machine which mainly used in liquid products such as toilet, water, perfume etc. PLC controller.

This machine has the feature of compact structure, rationality, simple operation and convenient maintenance and also the performance of fixing the surface and counting.

The height of surface can be adjusted. Components and parts which touched will adopts304 stainless steel. It suitable for the glass bottle, plastic bottle which draw out vacuum and uneasy to distortion. Generally, it has two kinds: common one and explosion resistant one. When customer order it, please point out which one you want.

Explosion resistant ones or adopts explosion resistant measure. Other part of the machine is same.

Main Technology Parameters of 4 heads vacuum filling:

Bottle height  less than 250 mm

Bottle Mouth Maximum Diameter  less than 20 mm

Minimum Diameter more than 4.5 mm

Filling volume 10-5000ml

Adjustable liquid High-Level (Away from the bottle)  26-50 mm

Profile Dimensions (Excluding liquid storage bottle)  L×W×H   660×470×1330mm

Adaptable environment temperature  (0—30) °C

Power 3AC  380V (cas for your requirement)

Vacuum pump  XD-020(Explosion-proof type2X-4A)

Pumping rate  5.5(Explosion-proof type 4) L/second

Motor power  0.75kw

The youtube video site about the operation of automatic flat&round The youtube video site about the operation of automatic flat&round bottles please feel free to browse our business youtube site: http://youtube.com/user/mrjackdu007
